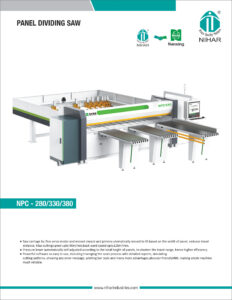

Panel Dividing Saw Machine
- Saw carriage by 2kw servo motor and moved viarack and piniona utomatically moved to fit based on the width of panel, reduces travel distance. Max cuttings peed upto 90m/min,back ward speed upto120m/min.
- Pressure beam automatically self-adjusted according to the total height of panels, to shorten the travel range, hence higher efficiency.
- Powerful software so easy to use, including managing the work process with detailed reports, simulating cutting patterns, showing any error message, printing bar code and many more advantages, alsouser-friendlyHMI, making whole machine much reliable.
Description | NPC 280 | NPC 330 | NPC 380 | |
---|---|---|---|---|
Cutting | Max. cutting length | 2780 mm | 3270 mm | 3800 mm |
Max. cutting thickness | 90 mm | 90 mm | 90 mm | |
Main Saw | Motor power | 15 kw | 15 kw | 15 kw |
Rotating speed | 3910 RPM/min | 3910 RPM/min | 4500 RPM/min | |
Saw blade diameter | 0380 mm (max 0400) | 0380 mm (max 0400) | 0380 mm (max 0400) | |
Saw blade shaft diameter | 60 mm | 60 mm | 60 mm | |
Scoring Saw | Motor power | 2.2 Kw | 2.2 Kw | 2.2 Kw |
Rotating speed | 4300 RPM/min | 4300 RPM/min | 4300 RPM/min | |
Saw blade diameter | 0200 mm | 0200 mm | 0200 mm | |
Saw blade shaft diameter | 45 mm | 45 mm | 45 mm | |
Saw Carriage | Motor power | 2 Kw | 2 Kw | 2 Kw |
Forward speed | 90 m/min | 90 m/min | 90 m/min | |
Backward speed | 120 m/min | 120 m/min | 120 m/min | |
Feeding | Automatic feeding motor | 2 Kw | 2 Kw | 2 Kw |
Max. feeding speed | 85 m/min | 85 m/min | 85 m/min | |
IPC | 15″ Windows | USB port: 4 pcs | USB port: 4 pcs | USB port: 4 pcs |
Float Table Blower | Motor Power | 2.2 kw | 2.2 kw | 2.2 kw |
Air Requirement | 0.6 MPa | |||
Dust Extraction | 150 mm*3 | 28 m/min | 28 m/min | 28 m/min |
Power Supply | AC3P 415V/50Hz | |||
Total Power | 23.5 Kw | |||
Overall Size | LxWxH | 6400 x 4995 x 1830 mm | 6900 x 5495 x 1830 mm | 7400 x 5900 x 1800 mm |
Total Weight | Kg | 4800 Kg | 5300 Kg | 6600 kg |
*Specifications are subjected to change without notice.
- Nanxing has invested hundreds of millions for taking in 500 world best CNC and robot machines for metal works, making its production ranked No. 1 in thewoodworking machinery industry. SOP professional assemble lines.
- Powerful SYNTECH CNC CONTROL SYSTEM equipped with specialist software to runfor high process efficiency and easy operation, the fastest in the field.
- Adapt 7 kinds of file format and common furniture design software.
- Customer Reference: 30+ countries; 2000+ machines
