cnc router machine NR-115 D
Door CNC NR 115D Plus

Door CNC Router Machine: High-End CNC Routing for Superior Door Crafting

Nihar Industries introduces the all-new Door CNC Router Machine that stands out for its reliable and high-end performance. Designed to deliver precise cutting and engraving results every time, our Door CNC Router Machine can meet all the latest requirements within the woodworking industry. Built with a sturdy and high-quality fabricated steel structure, the Door CNC Router Machine ensures optimum durability and stability during operations. It comes with a leak-proof hydraulic cylinder and hard chrome-plated rams that ensure seamless functionality along with long-lasting performance. It also provides equal heating across all daylight for uniform processing. Also, accurate welding and machining enhance precision and minimize deflection.

Our machines are equipped with a strong German power pack and maintenance-free hydraulic systems. Therefore, you can have reliable performance for many years to come. It also has a robust Siemens PLC control system that delivers smooth automation, and the Italian circulating pump helps to further improve its performance. Such features make our Door CNC Router Machine a highly advanced model that can deliver high-speed and precise door manufacturing output. So, no matter the level or complexity of the project you are working on, you can expect top-quality results with minimal effort.

Call Us
Get a Quote

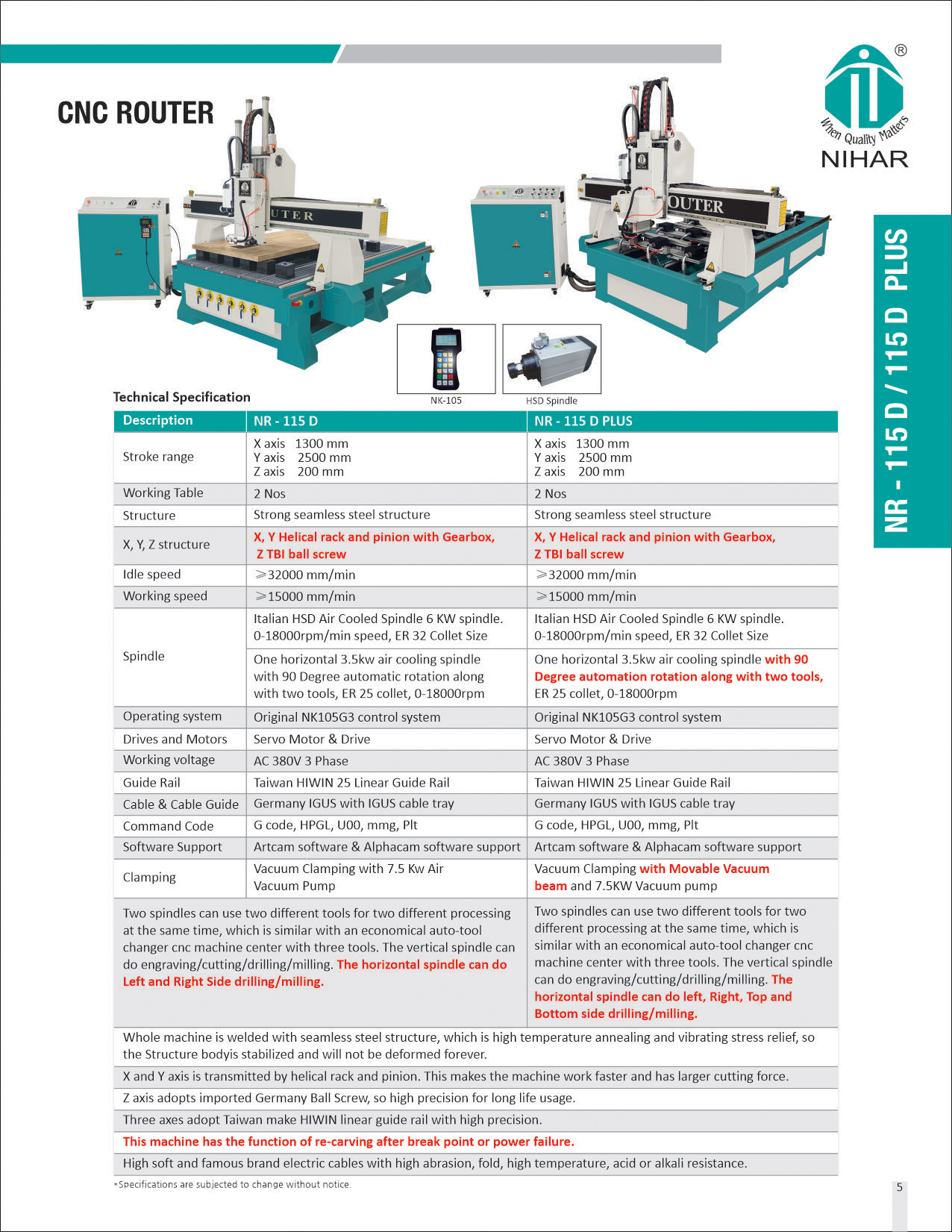

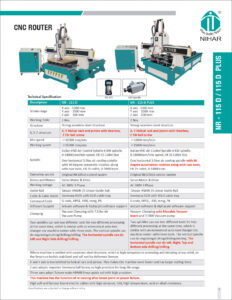

Techincal Specification of Door CNC Router Machine

Description NR – 115 D NR – 115 D Plus
Stroke Range X Axis: 1300mm Y Axis: 2500mm Z Axis: 200mm X Axis: 1300mm Y Axis: 2500mm Z Axis: 200mm
Working Table 2 Nos 2 Nos
Structure Strong seamless steel structure Strong seamless steel structure
X, Y, Z structure X, Y Helical rack and pinion with Gearbox, Z TBI ball screw X, Y Helical rack and pinion with Gearbox, Z TBI ball screw
Idle speed >32000mm/min >32000mm/min
Working Speed >15000mm/min >15000mm/min
Spindle Italian HSD Air Coolded Spindle 6 KW Spindle. 0-18000 rpm/min speed, ER 32 Collet Size. Italian HSD Air Coolded Spindle 6 KW Spindle. 0-18000 rpm/min speed, ER 32 Collet Size.
One horizontal 3.5kw air cooling spindle with 90 Degree automatic rotation along with two tools, ER 25 collet, 0-18000rpm One horizontal 3.5kw air cooling spindle with 90 Degree automatic rotation along with two tools, ER 25 collet, 0-18000rpm
Operating System Original NK105G3 Control System Original NK105G3 Control System
Drives & Motors Servo motor & Drive Servo motor & Drive
Working Voltage AC 380V 3 Phase AC 380V 3 Phase
Guide Rail Taiwan HIWIN 25 Linear Guide Rail Taiwan HIWIN 25 Linear Guide Rail
Cable & Cable Guide Germany IGUS with IGUS cable tray Germany IGUS with IGUS cable tray
Command Code G code, HPGL, U00, mmg, Plt G code, HPGL, U00, mmg, Plt
Software Support Artcam software & Alphacam software support Artcam software & Alphacam software support
Clamping Vacuum Clamping with 7.5Kw Air Vacuum Pump Vacuum Clamping with Movable Vacuum beam and 7.5KW Vacuum pump
Two spindles can use two different tools for two different processing at the same time, which is similar with an economical auto-tool changer cnc machine center with three tools. The vertical spindle can do engraving/cutting/drilling/milling. The horizontal spindle can do Left and Right Side drilling/milling. Two spindles can use two different tools for two different processing at the same time, which is similar with an economical auto-tool changer cnc machine center with three tools. The vertical spindle can do engraving/cutting/drilling/milling. The horizontal spindle can do left, Right, Top and Bottom side drilling/milling.
Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the Structure bodyis stabilized and will not be deformed forever.
X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force.
Z axis adopts imported Germany Ball Screw, so high precision for long life usage.
Three axes adopt Taiwan make HIWIN linear guide rail with high precision.
This machine has the function of re-carving after break point or power failure.
High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.

*Specifications are subjected to change without notice.

Door CNC Router Machine: Shape Every Door with Absolute Accuracy

Our Door CNC Router Machine comes in two distinct models: NR – 115 D and NR – 115 D Plus. Both models have an X-axis stroke range of 1300mm, Y-axis of 2500mm, and Z-axis of 200mm. The Door CNC Router Machine’s working table includes two separate platforms to facilitate efficient processing. The structure of the machine is made from robust and seamless steel, thus ensuring maximum stability.

So, if you are looking for a state-of-the-art solution to your door-making needs, consult us at Nihar Industries to buy our Door CNC Router Machine. We can also install the machine and provide a demo on how to use it.

Call Us
Get a Quote

Silent Features

  • Heavy duty high quality fabricated steel structure
  • Leak proof hydraulic cylinder
  • Hard chrome plated rams
  • Equal heating in all daylights
  • Accurate welded and machined for minimum deflection
  • Heavy duty german power pack
  • Maintenance free hydraulic systems
  • Siemence PLC control
  • Italian Circulating pump

Download Catalogue

Applications of Woodworking Door CNC Router Machine

Each of the Hot Press Machines for plywood, doors & laminates that are delivered by Nihar Industries can provide with a high level of efficiency for various projects. Moreover, they can also guarantee consistent performance for a long period of time.
  • Veneer Doors
  • Laminate Doors
  • Laminate Pressing
  • Moulded Doors
  • Micra Doors
  • Veneer Pressing
Vacuum-Press
Home VACCUME

FAQ's for Woodworking Machines

There are various types of woodworking machines, including CNC routers, panel saws, edge banders, jointers, planers, wide belt sanders, and tenon machines. Each serves specific woodworking needs, from shaping and cutting to finishing.

For small-scale projects, compact and versatile machines like benchtop CNC routers, mini planers, and small table saws are ideal. These are space-efficient and easy to use.

Woodworking machines are primarily designed for solid wood, plywood, MDF, and laminate. Some machines can also handle softer plastics or composite materials used in woodworking projects.

Always follow the manufacturer’s safety guidelines. Wear personal protective equipment (PPE) like safety glasses, gloves, and hearing protection. Regular maintenance and training are crucial to minimizing risks.

Routine maintenance, like cleaning and lubrication, should be performed after every use. Comprehensive servicing, such as checking for worn-out parts and recalibration, is recommended every 6–12 months, depending on usage.
