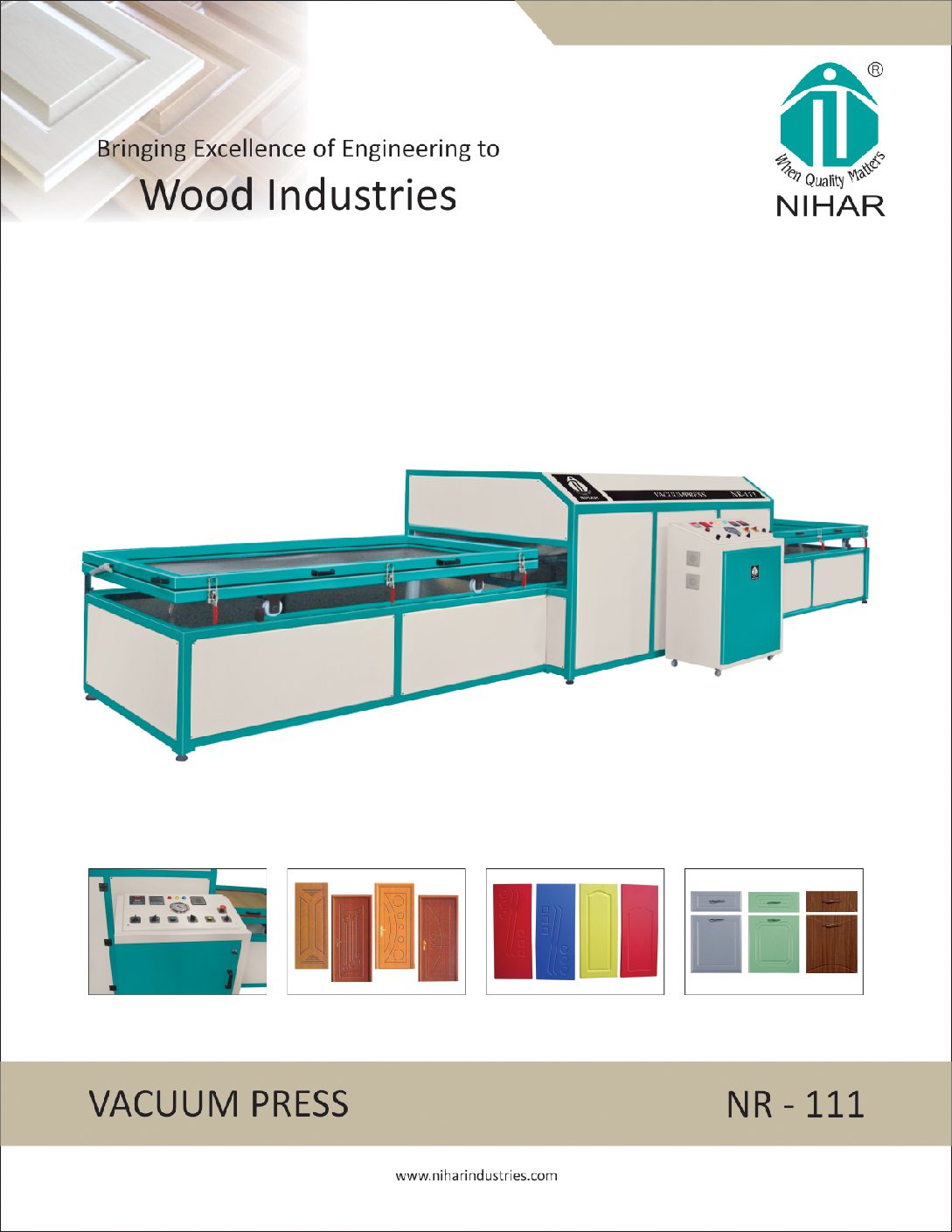

Vacuum Press Machine
Nihar Industries is a leading vacuum Press machine manufacturer that can offer robust and reliable performance for many years. The Vacuum Press machine units developed by Nihar Industries are notable for their superior structural design that helps to save energy and offers greater output every time. It also comes with additional features such as automatic vacuum control and multiple working table arrangements.
User friendly and rather easy to operate, these Vacuum Press machines can work greatly to enhance the production rates, thereby coming up with more number of finished goods within the same time. The centralized control and display system that comes with these machines offer greater options for the users to customize their functioning. The heating for the vacuum press machines can be achieved through electric heaters or infrared bulbs. They also come with single and double working tables that can speed up the process of production.
| Description | Unit | NR – 111 | NR – 111 E |
|---|---|---|---|
| No of Working Table | Nos. | 1 or 2 | 1 or 2 |
| Work Table Size (L x B) | mm | 2440 x 1250 | 2440 x 1250 |
| Max. Thickness of Work piece | mm | 50 | 50 |
| Max. Connecting Load | Kw | 18 | 18 |
| Average Cycle Time | Min. | 3-5 | 3-5 |
| Vacuum | mpa | -0.1 | -0.1 |
| Heating System | – | Heater / Infrared Bulb | Heater / Infrared Bulb |
| Controls | – | Manual/Auto | Manual/Auto |
| Application | – | MDF/HDF | MDF/HDF |
| Lamination Material | – | PVC Foil | PVC Foil |
| Vacuum Pump | – | German “Busch” Make | German “Busch” Make |
| Heating Chamber Insulation | – | Yes | No |
| Trolley Vacuum Control | – | Automatic Solenoid Valve | Manual |
*Specifications are subjected to change without notice.
- Energy Efficient Structure Design
- Vacuum through German Vacuum Pump
- Automatic Vacuum Control
- Silicon Sheet for Vacuum Holding and best quality result
- Working Trolley designed to accommodate 90” x 48” doors
- Heating through Electric Heaters
- Centralized Controlling and Display System
- Digital Temperature Indicator
- Robust & Heavy duty Structure
- Single & Double working table arrangement
- Faster Your Production
- User Friendly & Easy to Operate
- Heating through infrared Bulbs
Applications of Woodworking Vacuum Press Machines
The vacuum membrane press Machines that are designed and developed by Nihar Industries are truly some of the best in the industry. These units come with a broad range of features that allow users to carefully control the outcome of the pressing sessions.
- Membrane Doors
- Membrane Kitchen Shutters
- Membrane Shutters
- PVC Embosing Sheets
