Post Forming

Nihar Industries designs and develops Post Forming Machine units that come fitted with pneumatic cylinders for applying uniform pressure to aid in proper bonding of the laminates. The machines also come with a number of useful features such as mechanical drive control as well as drive motor along with brake to reduce possibility of slippage of the rotary parts.

Users can program the machine for manual cycle runs and automatic cycle runs. This makes it easier to work through initial trials and settings. These post forming machines also come fitted with hard chrome-plated heater bars that ensure long life and smooth operation. One of the most interesting benefits of using these machines is that they can be programmed for automatic post forming cycles that can guarantee faster production rates and seamless working.

Service We Offering

Mechanical engineers use these core principles along with tools like computer-aided design, product lifecycle management to design and analyze manufacturing plants, industrial equipment and machinery, heating and cooling systems, transport systems, aircraft, robotics and medical devices.

Design Engineering

  • Component & Subsystem
  • Value Engineering
  • Material Complaince

Product Engineering

  • Seating and cockpit
  • Product Management
  • Light Weighting

Advanced Engineering

  • Component & Subsystem
  • Value Engineering
  • Material Complaince

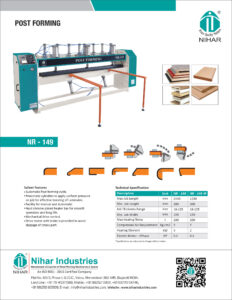

Description Unit NR – 149
Max Job Length mm 2440
Min. Job Length mm 300
Job Thickness Range mm 16-125
Min. Job Width mm 150
Max Heating Temp c 200
Compressed Air Requirement Kg-cm2 7
Heating Element KW 3
Electric Motor – 3Phase HP 0.5

*Specifications are subjected to change without notice.

  • Automatic Post forming cycle
  • Pneumatic cylinders to apply uniform pressure on job for effective bonding of Laminates
  • Facility for manual and Automatic
  • Hard chrome plated heater bar for smooth operation and long life
  • Mechanical drive control
  • Drive motor with brake is provided to avoid slippage of rotary part
