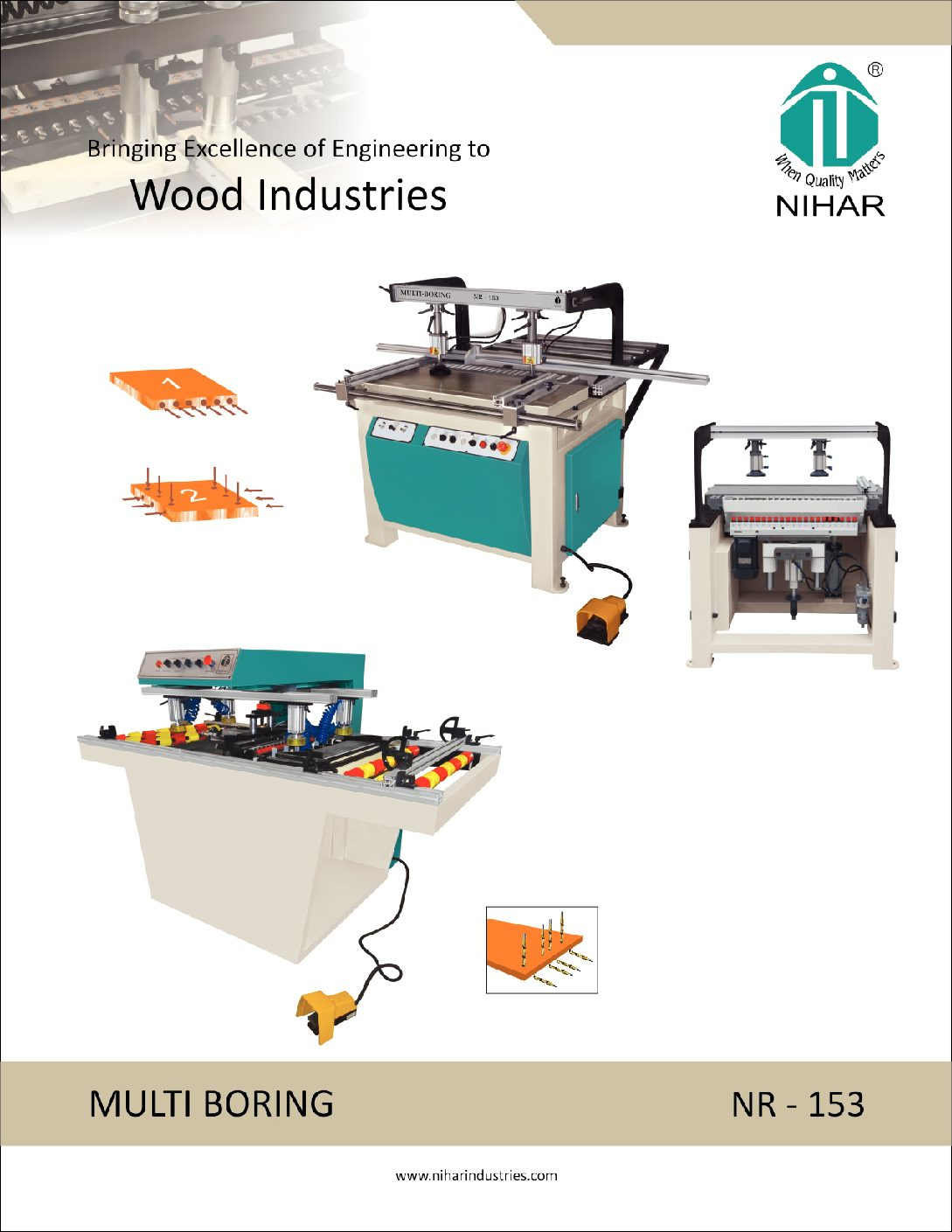

Multi Boring Single Raw

Nihar Industries is one of the most reliable producers of top end Multi Boring machines in India. The Multi Boring machines offered by Nihar Industries can come in the form of single raw and double raw models. These machines offer a number of practical advantages that make them perfect for any kind of wood boring project. These include quick and easy changing of drills, locking system of the spindle shaft, pneumatic clamping arrangement as well as application of anti wear materials meant for the sliding parts.

These machines are also equipped with heavy duty and rigid frames that can be used for holding the boring heads. The drilling depths that can be achieved by these Multi Boring machines are 640 mm. The total number of spindles included in a single set is 21 and the spindle rotation speed that can be achieved by them is 2800 RPM. Such features make them ideal for heavy boring activities.

Service We Offering

Mechanical engineers use these core principles along with tools like computer-aided design, product lifecycle management to design and analyze manufacturing plants, industrial equipment and machinery, heating and cooling systems, transport systems, aircraft, robotics and medical devices.

Design Engineering

  • Component & Subsystem
  • Value Engineering
  • Material Complaince

Product Engineering

  • Seating and cockpit
  • Product Management
  • Light Weighting

Advanced Engineering

  • Component & Subsystem
  • Value Engineering
  • Material Complaince
Description Single Raw
Maximum working thickness 80mm
Number of Spindle Head 1 Nos
Number of Spindles in One Head 21 Nos
Total Spindles 21 Nos (21 x 1)
Center Distance Between Each Spindle 32mm
Center Distance Between First & Last Spindle 640mm
Shank diameter of drill 10mm
Spindle Rotation Speed 2800RPM
Maximum Drilling Diameter 35mm
Drilling Depth 640mm
Compressed Air Requirement 0.6-0.8mpa
Power 1.5KW / 415V /50 Hz

*Specifications are subjected to change without notice.

  • Easy and quiok changing of drills
  • Pneumatic clamping arrangment
  • Locking system of spindle shaft
  • Rigid and heavy duty frame to holding boring heads
  • anti wear materials for sliding parts
